1. Product Overview Description

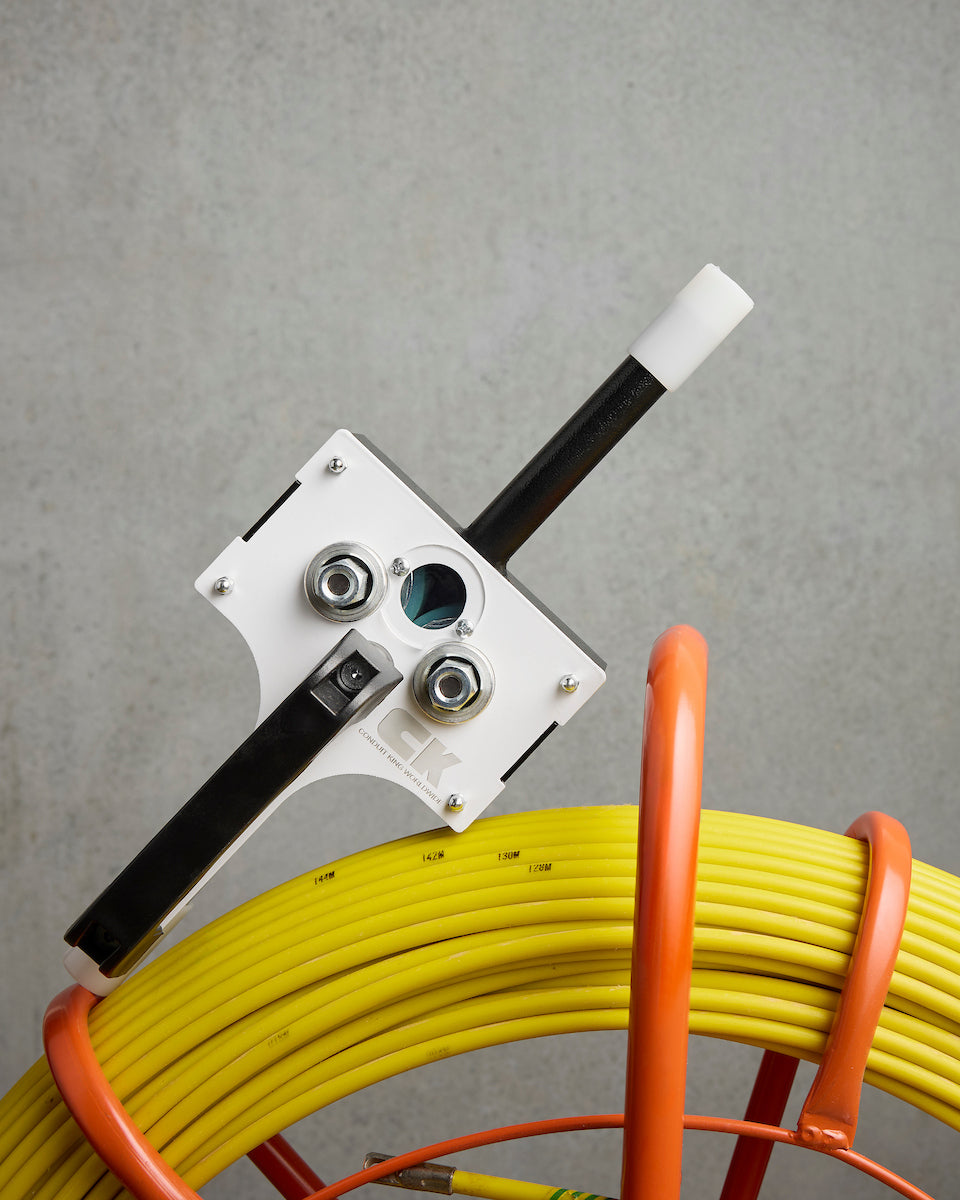

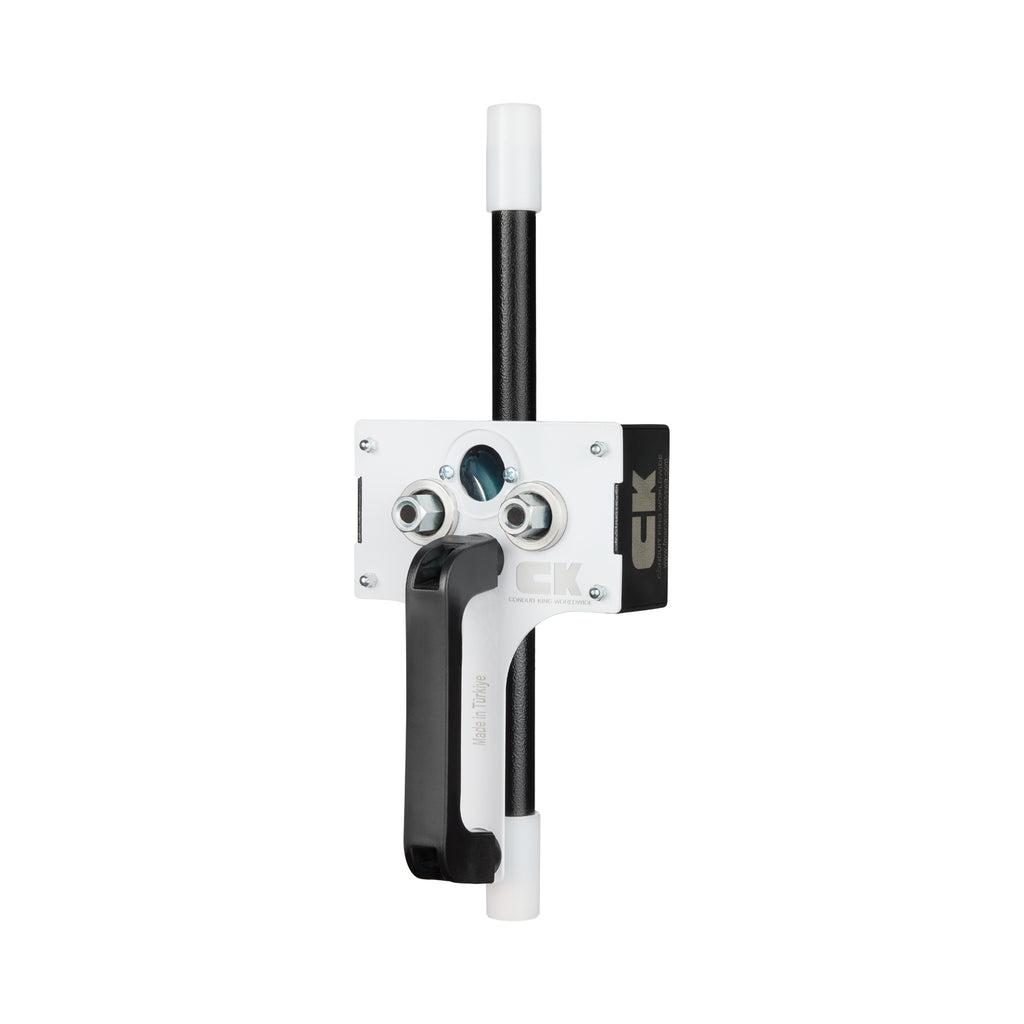

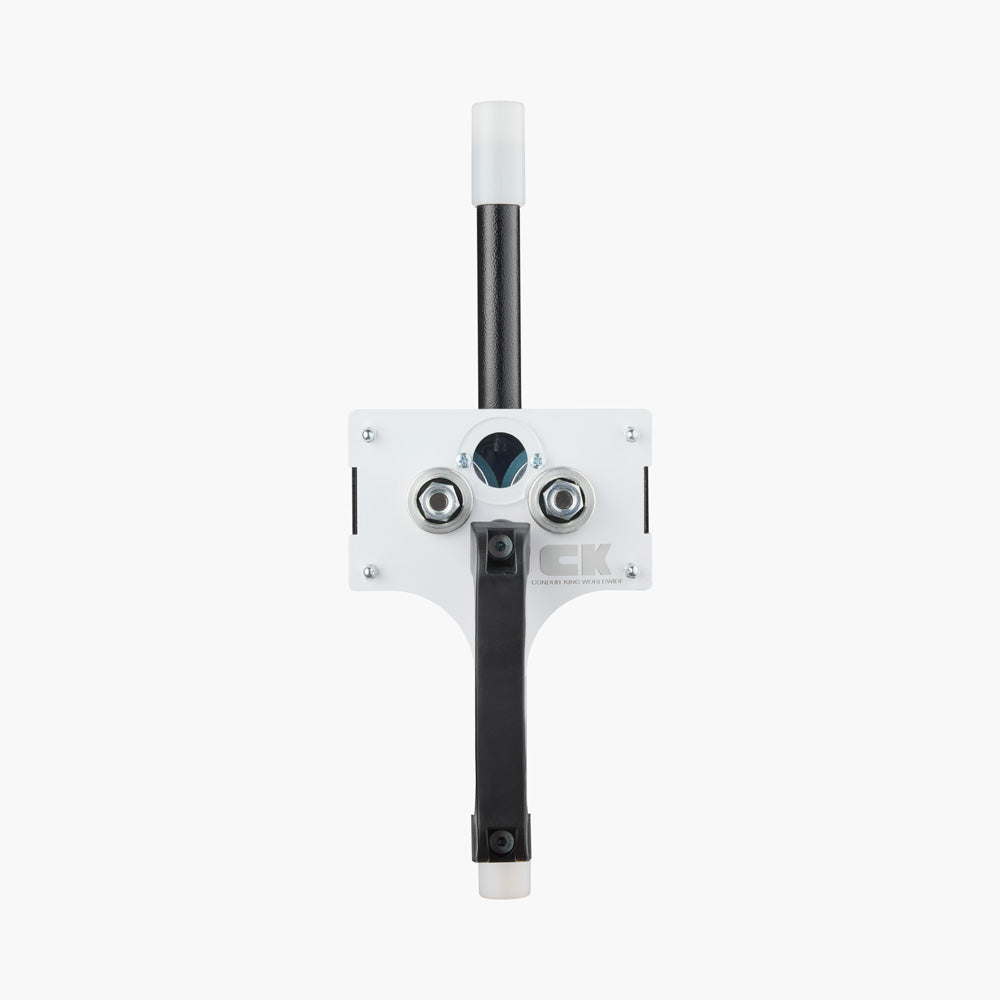

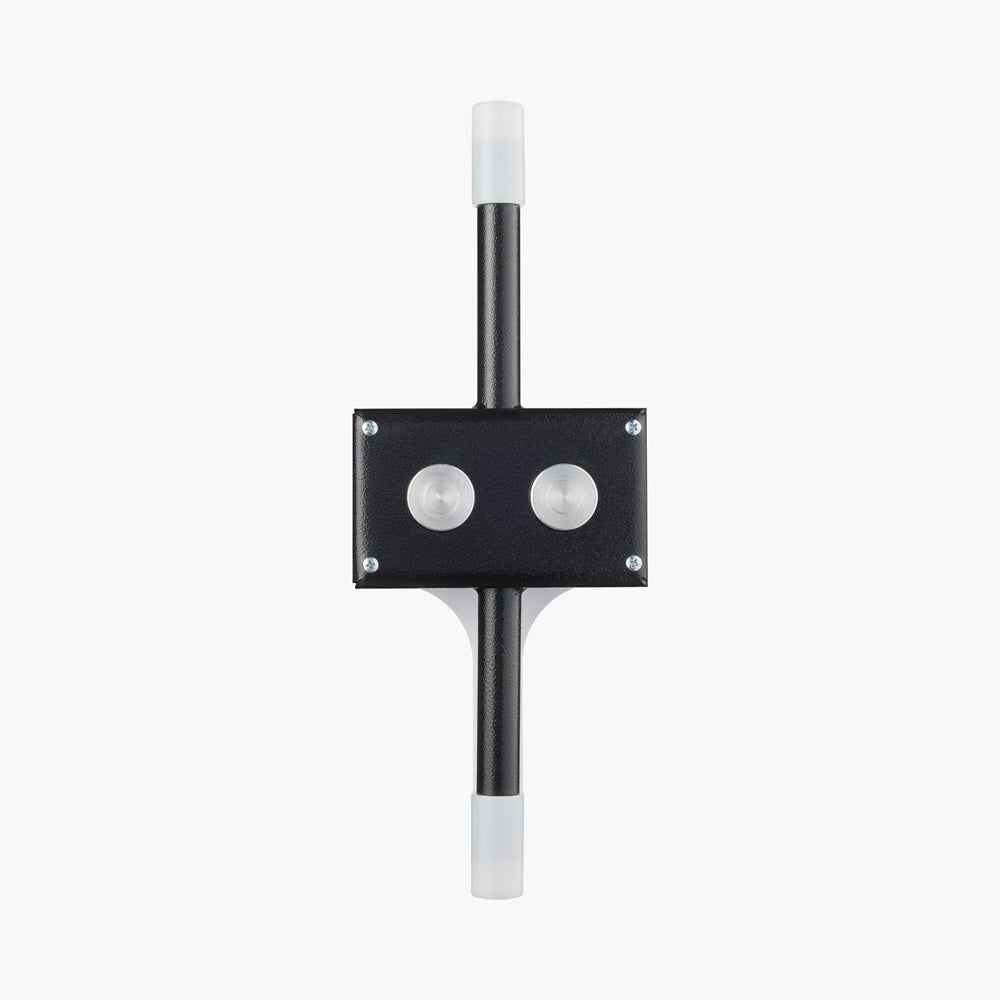

The CONDUIT KING CABLE FEEDING MACHINE is tool accessory designed to assist in guiding and feeding cable snakes efficiently through tight spaces and conduits. It is intended for professional and industrial applications where controlled cable placement is required for cable snakes up to 8mm in thickness. CABLE SNAKES NOT INCLUDED

Included Components

• 1x CONDUIT KING CABLE FEEDING MACHINE unit
• 1x Drill Attachment
• 1x Plastic tube

Intended Use

The CONDUIT KING CABLE FEEDING MACHINE is designed for de-energized applications related to cable handling. For the SM-KS1, we recommend using cable snakes up to 8mm in diameter. Ideal options include flexible nylon-coated snakes (commonly known as tiger snakes) or coiled steel cable snakes (also referred to as flexible spring steel snakes). We don’t recommend using fiberglass snakes with this model.

2. Safety Instructions

General Safety Warnings

• Read this manual carefully before use.
• Ensure that the CONDUIT KING CABLE FEEDING MACHINE is used only for its intended purpose.
• Avoid using excessive force that could damage cable snakes or the feeder mechanism.
• Keep hands clear of moving parts during operation.
• Store in a dry environment when not in use.
• Dispose of worn or damaged parts responsibly.
• Always keep drill in the clockwise/ forward/ drilling setting, even when the drill attachment is on the reverse mechanism your drill must stay in the clockwise/ forward/ drilling setting. NEVER USE WITH IMPACT DRIVER.

Compliance Notice

This product is designed in compliance with AS/NZS 62079:2001 for structured and clear instructional content. It does not fall under electrical certification requirements but is compliant with Australian Consumer Law (ACL) safety standards.

3. Installation & Operating Instructions

Installation Steps

1. Place the CONDUIT KING CABLE FEEDING MACHINE on a stable, flat surface.
2. Adjust positioning to align with the cable snake pathway and ensure pathway is clear to begin the process of feeding the cable snake.
3. Secure the feeder in place if required.Always keep drill in the clockwise/ forward/ drilling setting, even when the drill attachment is on the reverse mechanism your drill must stay in the clockwise/ forward/ drilling setting. NEVER USE WITH IMPACT DRIVER.

Operating Instructions:

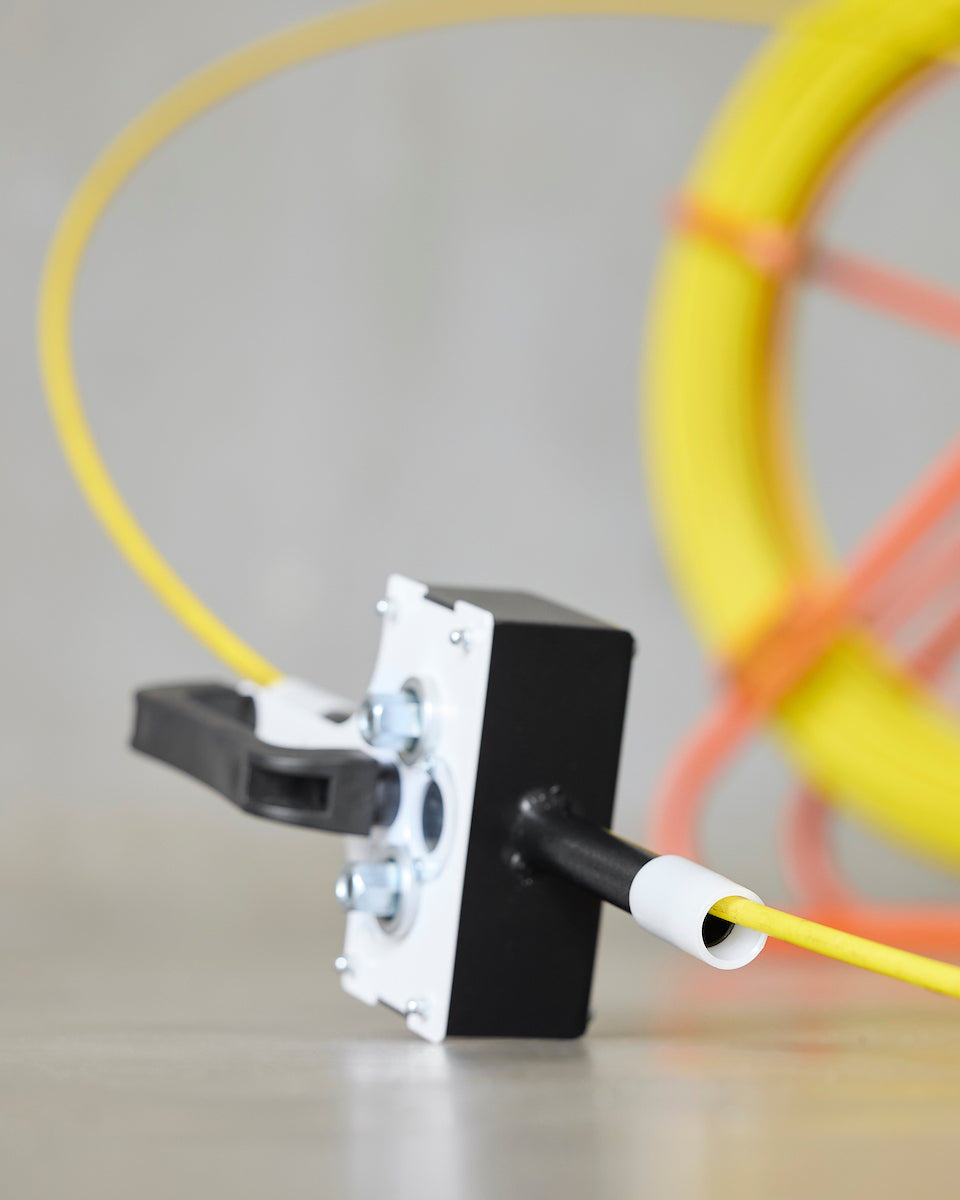

1. Insert the cable snake into the guide mechanism.

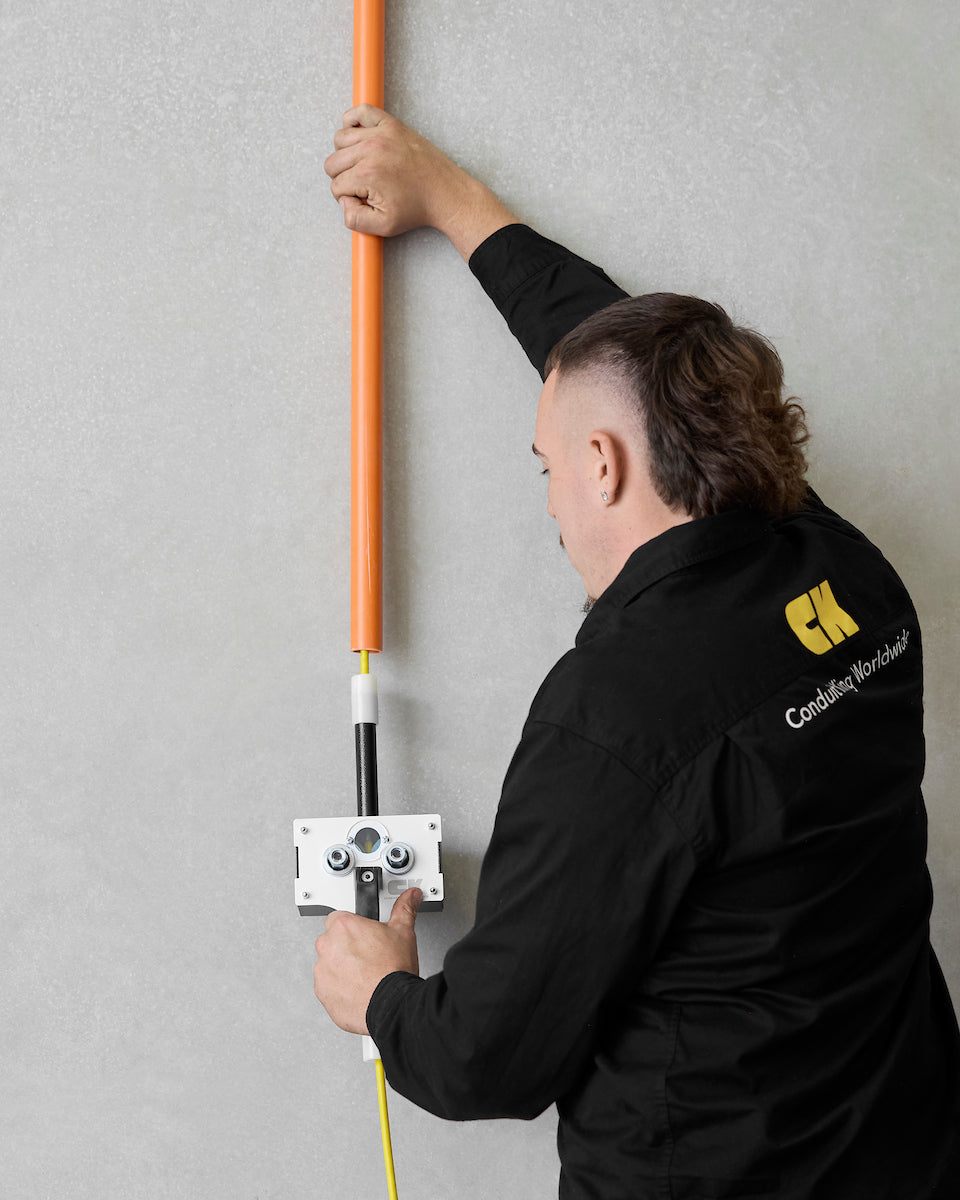

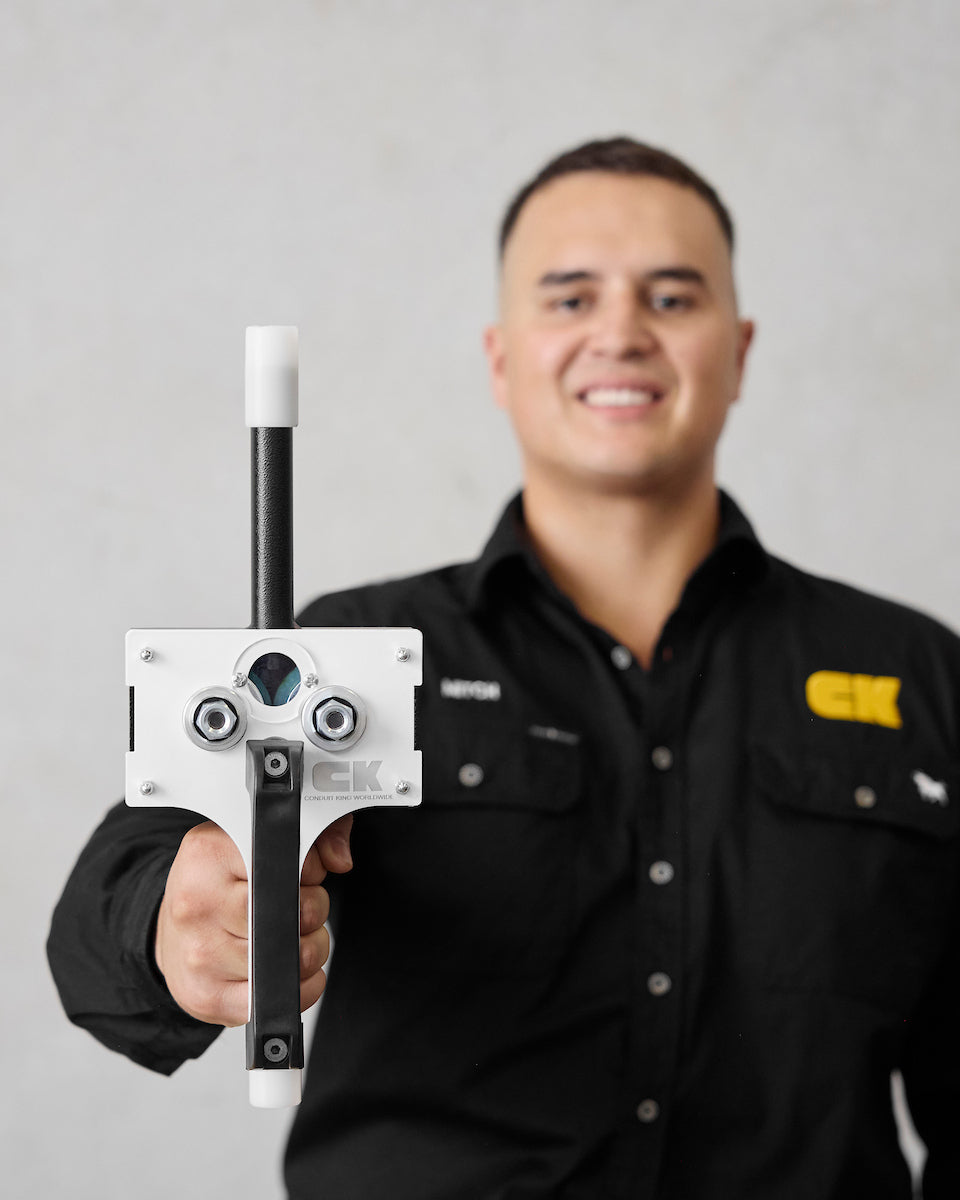

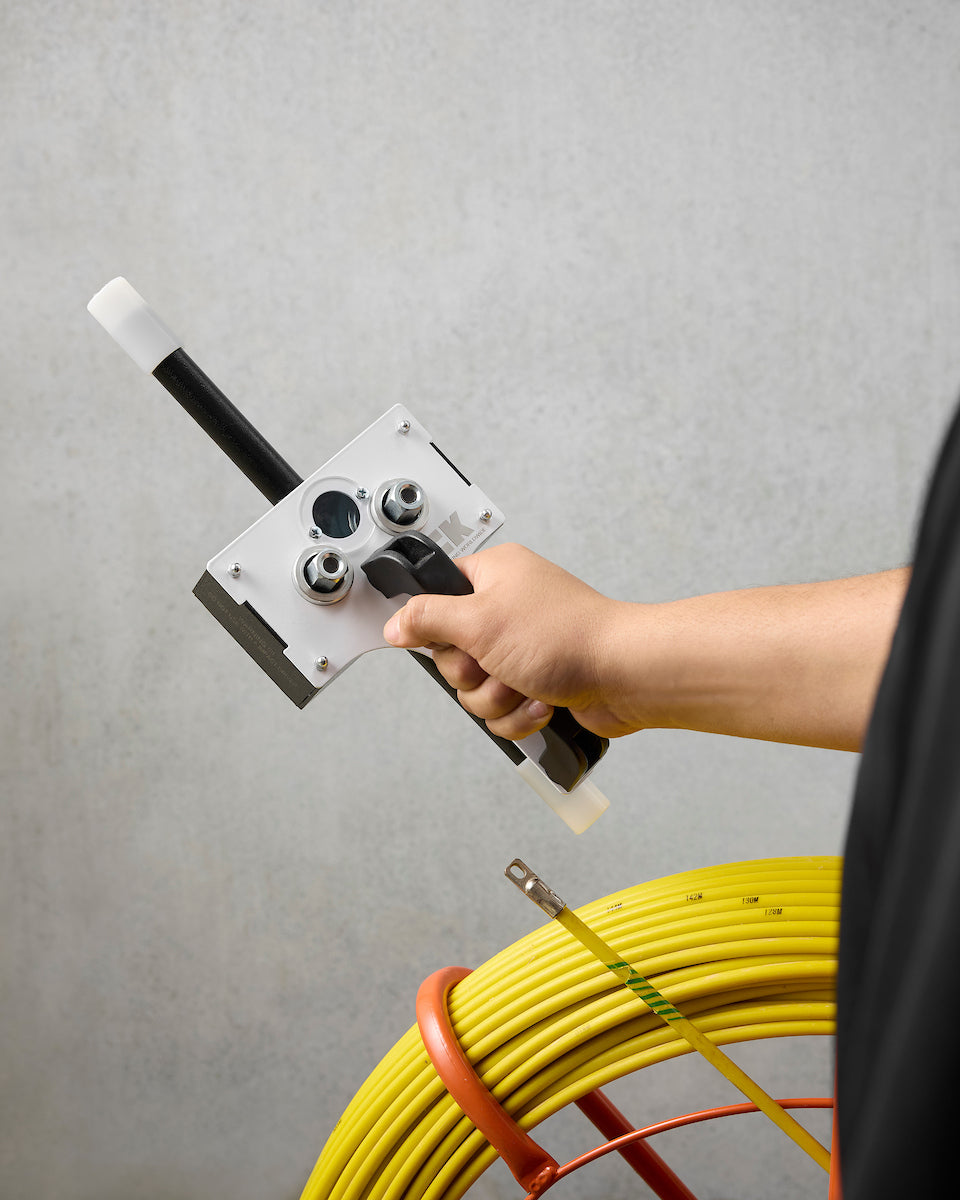

2. Grip cable feeder by the handle (see attached Diagram)
3. Slowly feed the cable snake through, ensuring smooth movement. Always keep drill in the clockwise/ forward/ drilling setting, even when the drill attachment is on the reverse mechanism your drill must stay in the clockwise/ forward/ drilling setting. NEVER USE WITH IMPACT DRIVER.
4. Adjust positioning as necessary to avoid cable snake tangling.
5. After use, clean and store the device properly.

4. Troubleshooting Guide

• Issue: Cable snake jammed
• Possible Cause: Misalignment
• Solution: Reposition the feeder and retry
• Issue: Excessive force required
• Possible Cause: Cable snake too thick
• Solution: Use a thinner cable snake or adjust feeding angle
• Issue: Device not stable
• Possible Cause: Unsecured placement
• Solution: Secure the feeder

5. Warranty & Consumer Rights

Warranty Information

• This product comes with a 12-month limited warranty against defects in materials and workmanship under normal use conditions.
• The warranty does not cover accidental damage, unauthorized modifications, or normal wear and tear. However, Australian Consumer Law rights still apply.
• Proof of purchase is required for all warranty claims.
• Return shipping costs will be covered by FM Enterprises WA PTY LTD if the defect is confirmed as a manufacturing fault.
• This warranty is in addition to rights and remedies available under Australian Consumer Law.

Consumer Guarantee Statement

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Warranty Claim Process and Information

To make a warranty claim:

1. Contact our customer support at Admin@fmenterprieswa.com
2. Provide proof of purchase and details of the issue.
3. If required, return the product to the provided address.
4. Warranty claims will be assessed, and repairs or replacements will be issued within a reasonable timeframe.

For warranty claims and information, contact FM Enterprises WA PTY LTD at admin@fmenterpriseswa.com

6. Compliance & Contact Information

Compliance Statement

The CONDUIT KING CABLE FEEDING MACHINE complies with AS/NZS 62079:2001 for user instructions and meets general safety requirements under Australian Consumer Law (ACL).
